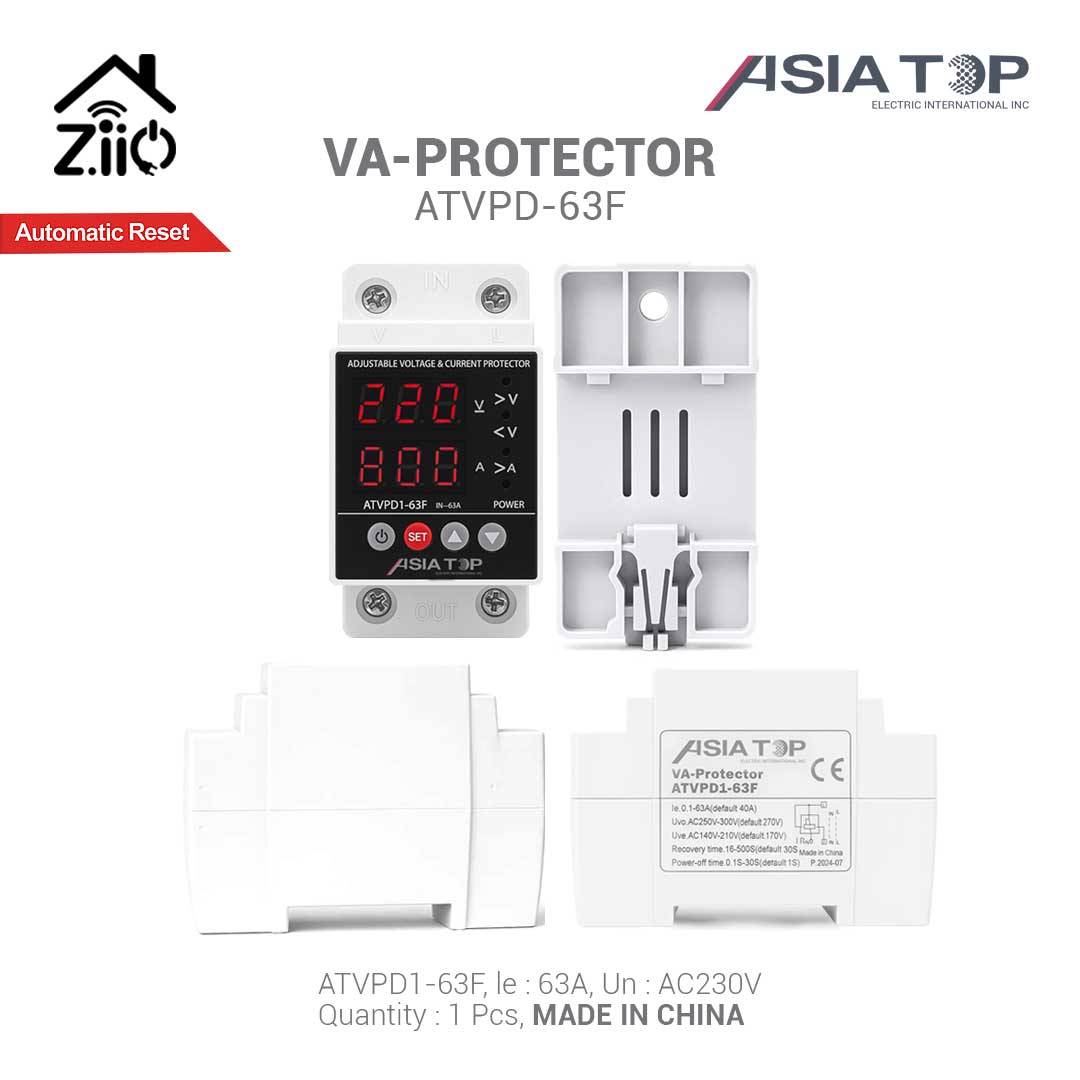

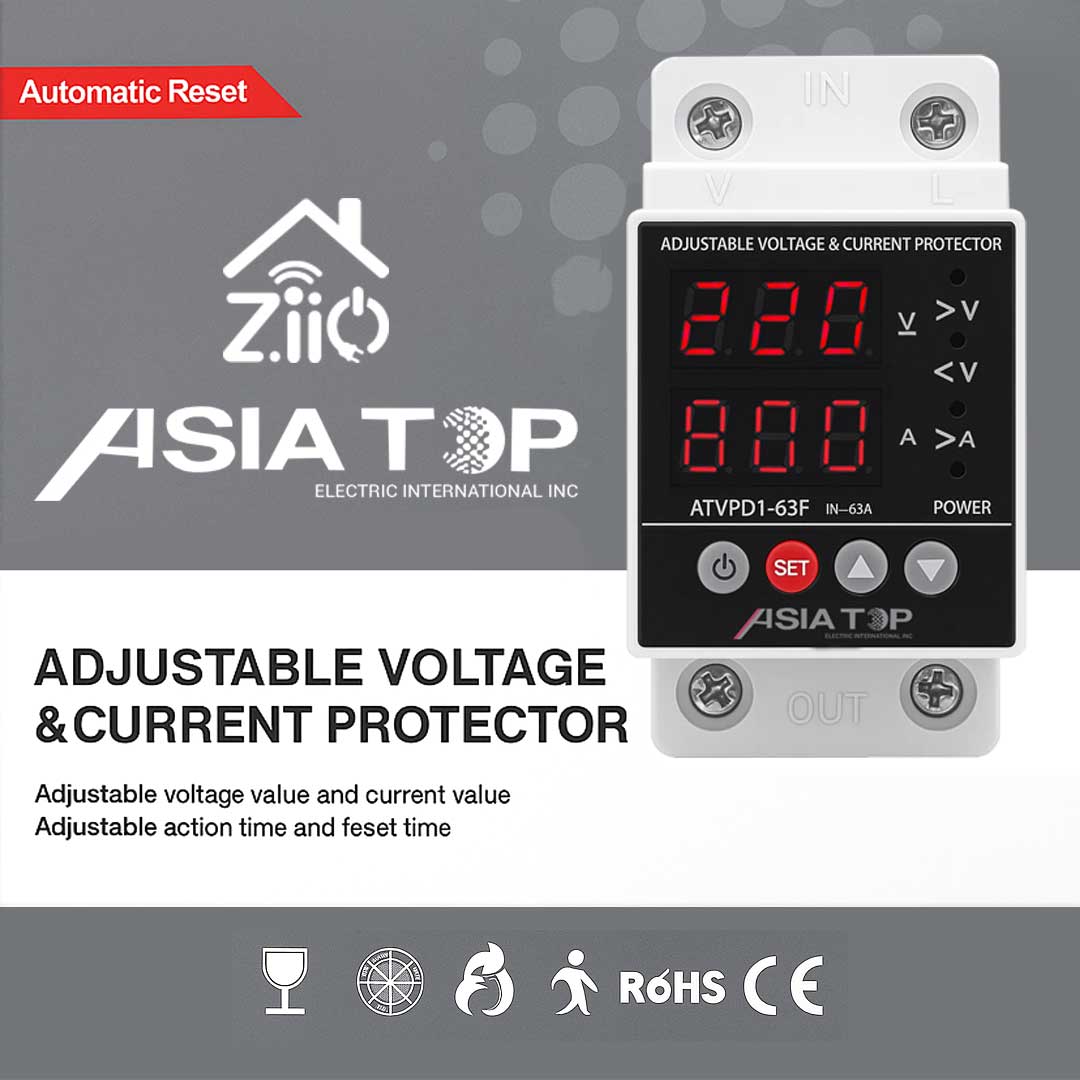

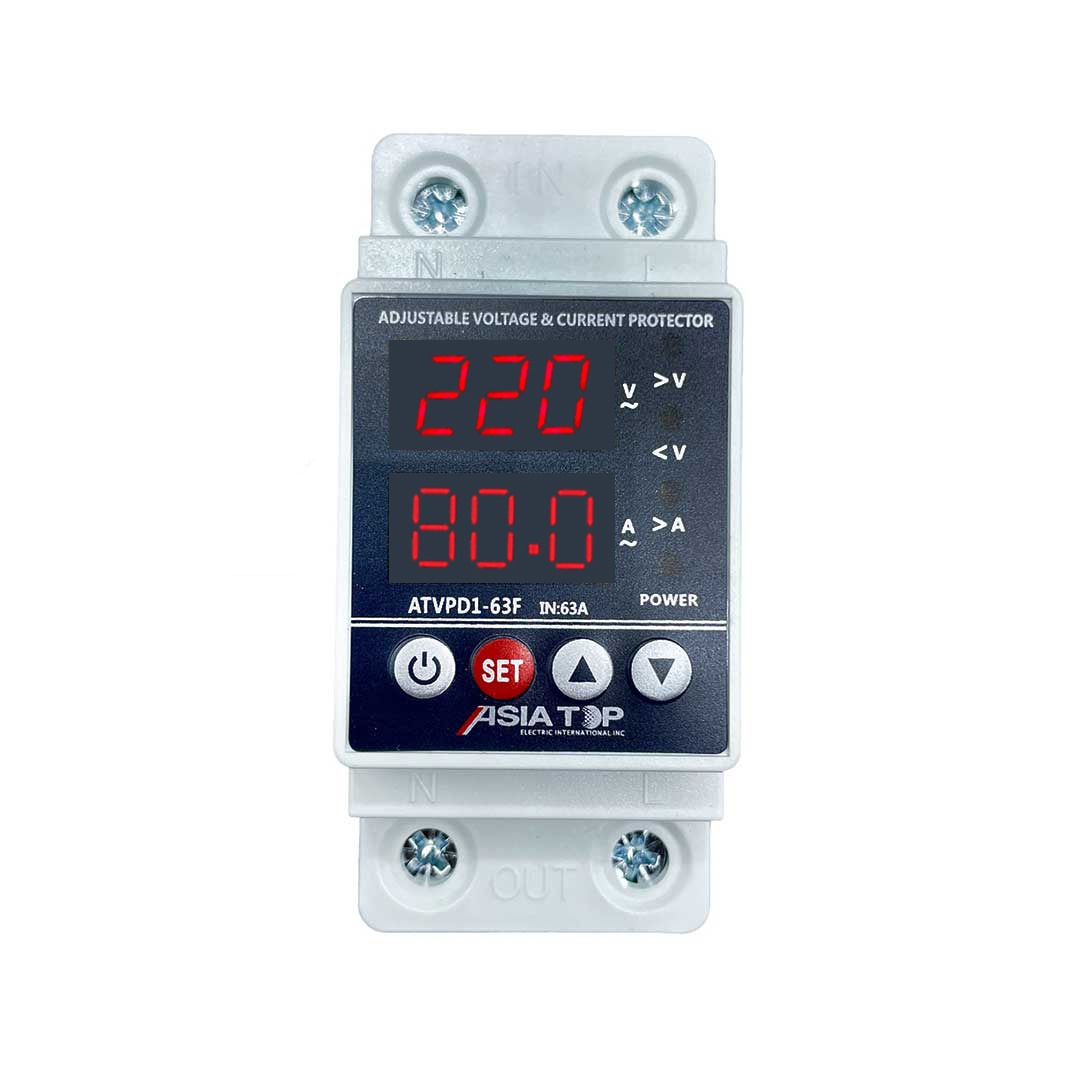

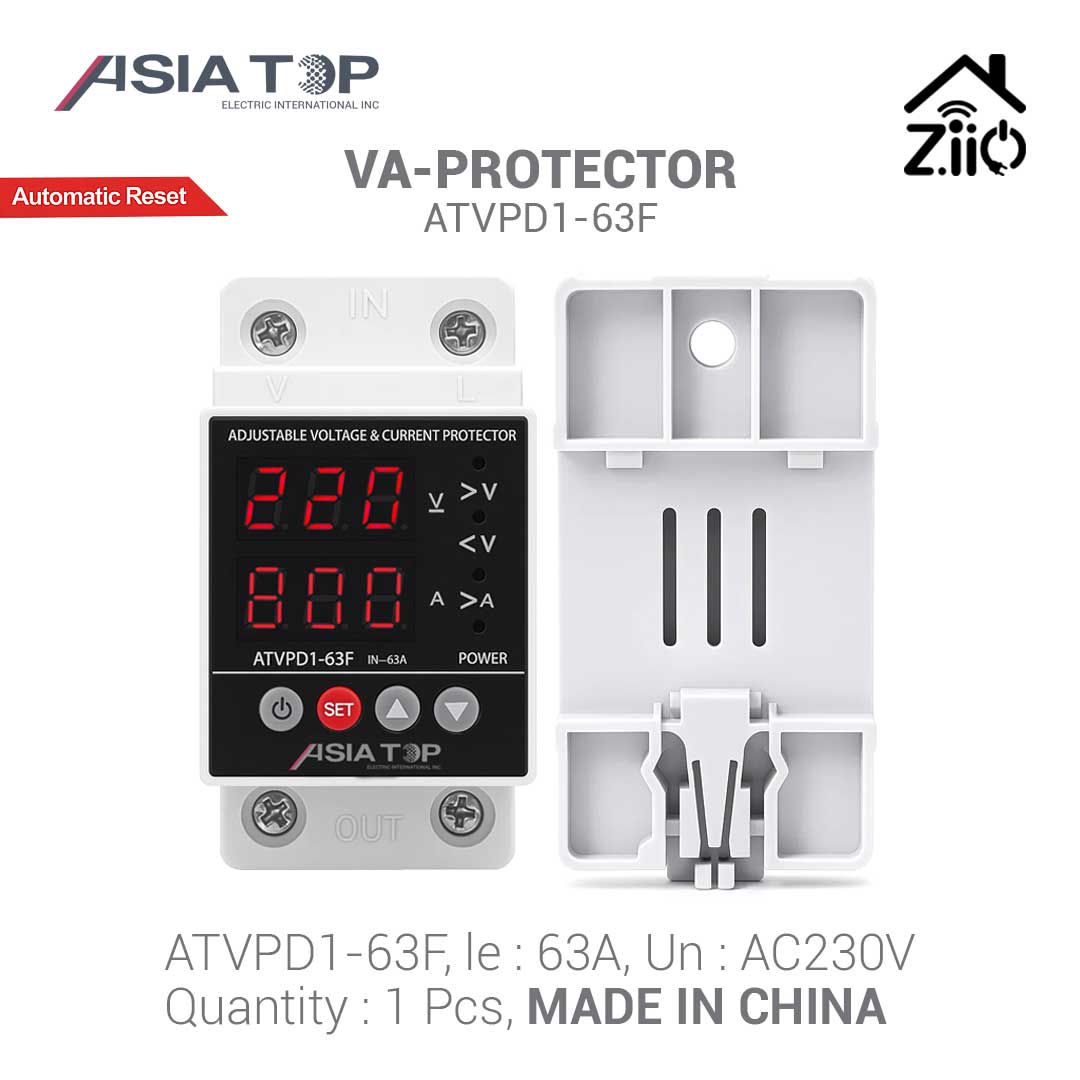

A voltage and current protector switch is a safety device designed to protect your electrical appliances from dangerous power surges and irregular currents. It safeguards your devices by detecting and limiting both over-voltage and over-current conditions. By either blocking or diverting excess energy to the ground, it ensures that only safe levels of electricity flow through — helping to prevent damage, extend appliance lifespan, and enhance overall electrical safety in your home or office.

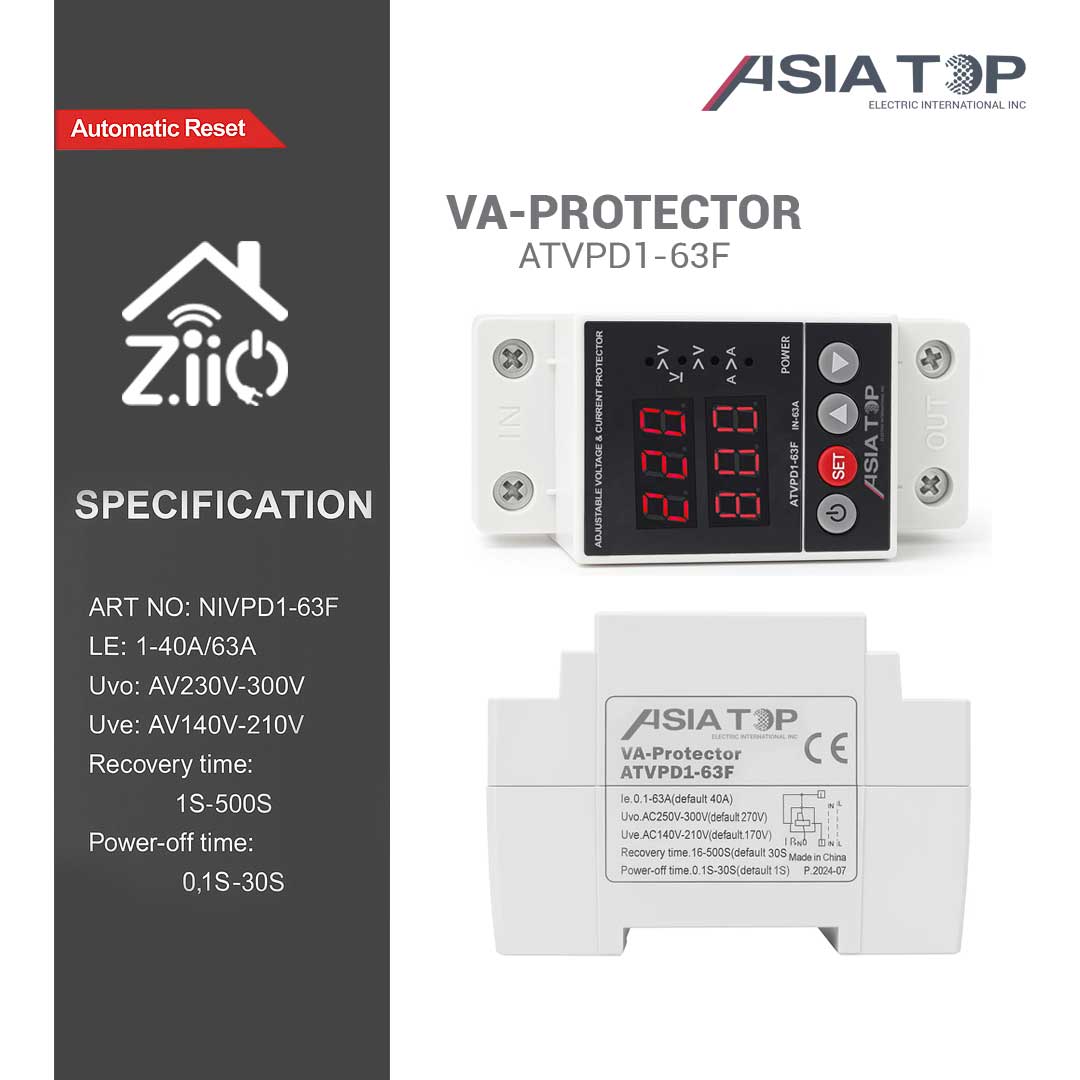

Specifications:

• Operating Voltage: 220V AC

• Frequency: 50Hz / 60Hz

• Voltage Range: AC 80V to 400V (Single Phase)

• Current Setting Range: 1A to 63A

• Restart Delay Time: Adjustable from 1 to 300 seconds

• Rated Insulation Voltage: 400V

• Output Contact: 1 Normally Open (NO)

• Working Current Capacity: Up to 63A

• Under-Voltage Protection Threshold: Adjustable between AC 160V – 220V

• Over-Voltage Protection Threshold: Adjustable between AC 230V – 275V

• Storage Temperature Range: -50°C to 55°C
